Kaiser introduces professional daylight light boxes with universal T-slot

19. Mai 2022

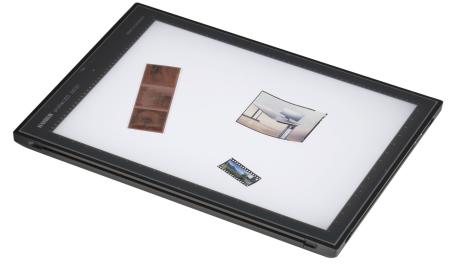

New generation of prolite LED light boxes provides even more than color-correct and uniform illumination

Prolite LED
prolite LED

Kaiser Fototechnik is known for high-quality backlight solutions for viewing, sorting, and photographic capture and digitization of slides, negatives, and other transparent originals. They are also regularly used in research, teaching and industry.

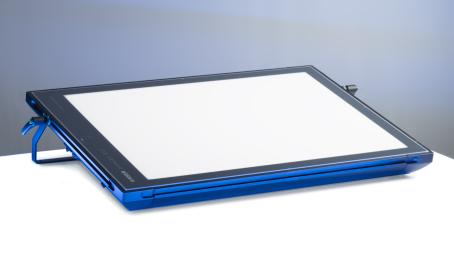

All four aluminum side sections of the prolite LED are equipped with a 6 mm T-slot to meet the high requirements in these different areas. Not only can the optional swivel bracket for set-up and wall mounting be fastened in it, but also numerous connecting parts for brace profile systems, e.g. for installation into other equipment.

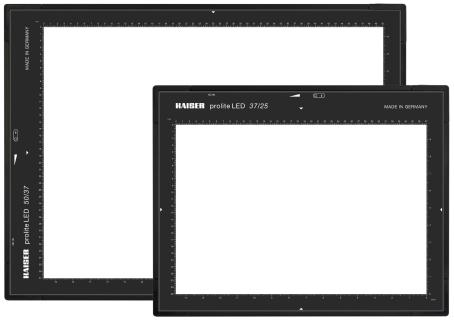

The dimmable prolite LED is available in two sizes with illuminated areas of 37 x 25 cm and 50 x 37 cm respectively. The acrylic glass screens have been specially optimized for backlighting with LEDs and therefore provide a very homogeneous light distribution together with a high luminous efficiency. The maximum luminance of 9400 or 10000 cd/m² reaches similarly high values as with the Kaiser Scan light boxes.

The illuminated cm and inch scales on the edge of the illuminated surfaces are used for exact positioning of the originals. In addition, the originals can be fixed with two strong neodymium magnets supplied with the unit. Additional magnets are available as accessories.

The installed LEDs have a high color rendering index (CRI=95) with a similar color temperature to daylight of 6000 Kelvin. In addition, they offer low heat emission and flicker-free light without residual ripple, free of infrared and UV components.

The units are powered by a wide range power supply with an input voltage of 100-240 volts, 50/60 Hz (AC) and an operating voltage of 24Volt (DC).
