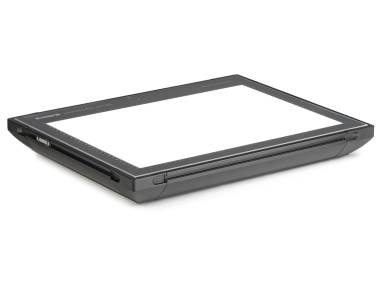

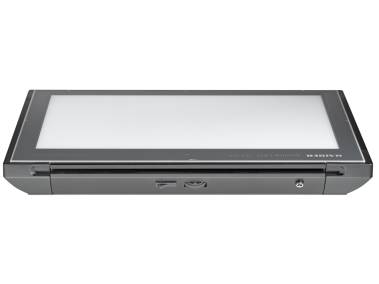

prolite LED 37/25 Light Box

Code no: 2479

Professional daylight light box with high CRI LEDs. Steplessly dimmable. 6 mm T-slot on all four side sections for installation in systems and installations and for attaching accessories. Separate mains adapter.

Uniform and color correct illumination for viewing, sorting and photographic capturing (digitizing) of slides and other transparent originals or of other materials.




Specifications:
Illuminated area:                 37 x 25 cm (14.6 x 9.8 in.)
Light source:                       135 SMD LEDs
Color temperature:              approx. 6000 Kelvin
Color rendition index:          CRI: 95
Light density:                       9400 cd/m²
Operating voltage:               24 V
Rated power:                        29 W
Dimensions (WxHxD):          439 x 54 x 343 mm (17.3 x 2.1 x 13.5 in.)
Weight:                                 3.12 kg (6.9 lbs.)

Scope of delivery: prolite LED 37/25 light box, mains adapter, mains lead, two neodymium magnets and two M6 square nuts.

Also available as prolite LED 50/37 light box (2480) with illuminated area 50 x 37 cm (19.7 x 14.6 in.).


Learn more:

High CRI LEDs: color temperature approx. 6000 Kelvin, color rendering index CRI: 95, flicker-free operation. Precise color rendering for inspection and photographic reproduction of originals.

Dimmer: brightness steplessly adjustable.

High-quality acrylic glass plate with particularly high transmission and also optimized light diffusion, cm and inch scales at the illuminated area.

Two strong neodymium magnets for fixing originals right next to the illuminated area.

Sturdy light metal housing with 6 mm T-slot on all four side sections, compatible with various connecting and accessory parts for 6-slot profile systems. This enables installation in systems and installations as well as the attachment of accessories to the light box.

A sliding block in each of the T-slots of the short sides can be moved and locked, internal thread 5 mm, e.g. for fastening the optional swivel bracket.

Two square nuts with M6 (6 mm) thread for insertion into the T-slot of the side sections.

Non-slip rubber feet.

Power supply via included mains adapter (input: AC 100-240 V, 50/60 Hz, output: DC 24 V, 2.5 A).

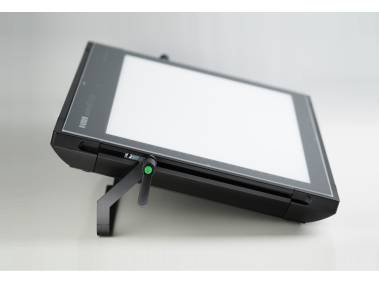

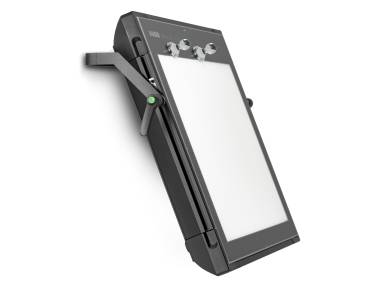

Universal swivel bracket made of aluminum as optional accessory. Can be used both as a support bracket and for wall mounting of the light box.




Accessories

2482 - Swivel Bracket for prolite LED 37/25

2485 - Neodymium Magnets

2351 - All-Purpose Magnifier 4.5 x

2332 - Base Magnifier 10-fold

2334 - Base Magnifier 8-fold

2457 - FilmCopy Vario

2459 - FilmCopy dia MF

Subject to errors and technical changes.

This product is marketed for the purpose of illumination for image capture. It is not intended for use in other applications.
