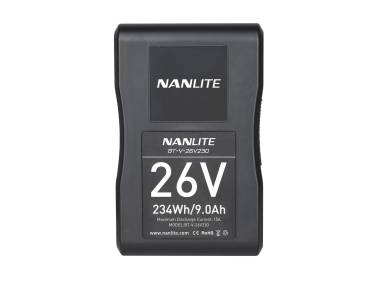

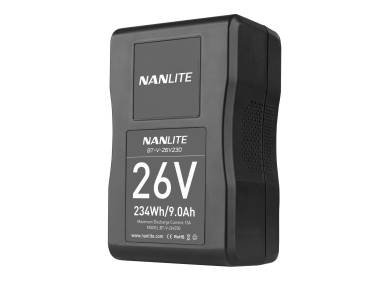

NANLITE BT-V-26V230 V-Mount Battery

Code no: 3886

The BT-V-26V230 lithium-ion battery is suitable for powering certain lights that can be operated with an input voltage of 26 V (see below for compatibility overview). It can also be used for powering certain other devices with an input voltage of 24 - 30 V.

The battery is equipped with connectors, for example for use on the MixPanel 150 multi-functional panel light or on the control unit of the Forza 500 II and Forza 720 spot lights.

It also has a D-Tap socket (Anton Bauer), for charging the battery or for powering a suitable device via cable with D-tap connector (26 V output).

The battery must only be charged with a special 29.4 V charger for lithium-ion batteries (e.g. NANLITE BT-CGV-26V-2, code no. 3888, for two 26 V lithium-ion batteries).

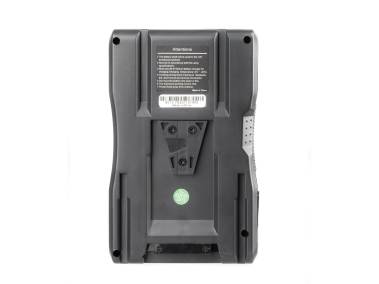

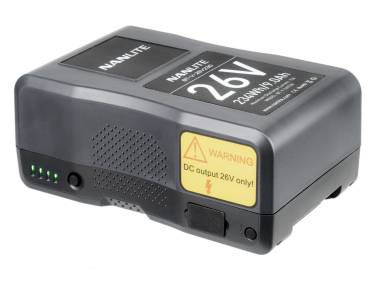

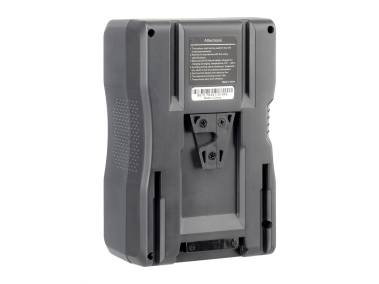

With charge level indicator and V-mount connector for attachment.


Specifications:

Rated voltage:              26 V
Capacity:                      9 Ah
Energy content:            234 Wh
Continuous current:      max. 10 A
Short-term current:       up to 15 A
Working temperature:   - 20 °C ...+ 55 °C
Charging temperature:      0 °C ... + 40 °C
Storage temperature:      - 5 °C ... + 35 °C, at relative humidity < 75 %
Dimensions (LxWxH):  approx. 152 x 97 x 65 mm (6 x 3.8 x 2.6 in.)
Weight:                         approx. 1180 g (2.6 lbs.)

Can be used with:
NANLITE
3790    Forza 200
3773*  Forza 500
3912*  Forza 500 II
3913*  Forza 500B II
3838*  Forza 720
3839*  Forza 720B
3877   MixPanel 150
-------
* two 3886 batteries required

Accessories

3888 - NANLITE BT-CGV-26V-2 Dual Charger

Subject to errors and technical changes.
