Code no: 3727

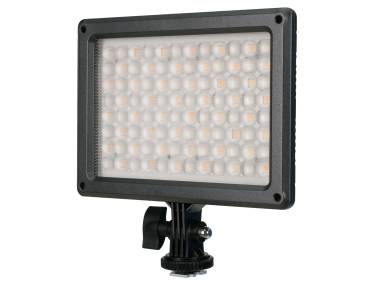

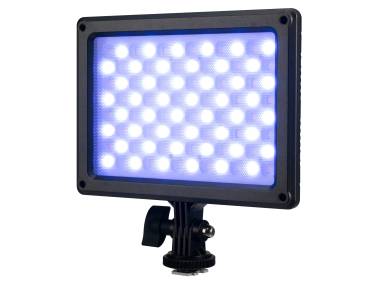

Multi-functional LED camera light with slim housing and glare-free white light, directed white light and colored light illumination modes as well as 17 special lighting effects that can be customized individually. Comes with lithium-ion battery and charger.

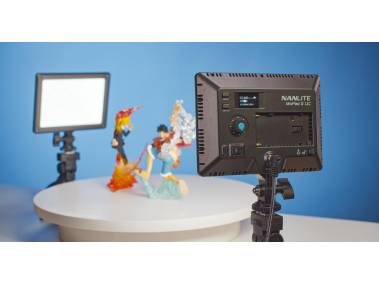

For the creative arrangement of photo and video shots in the studio, home office or on location.

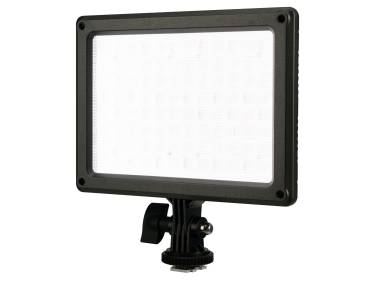

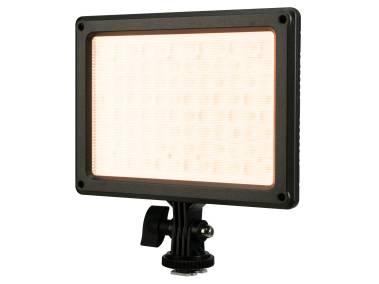

Glare-free white light is particularly suitable for portrait, interview, social media, vlogging, video conference, webinars, still life, table top and macro shots. Directed white light allows for high illuminance and therefore greater range. Both with glare-free white light as well as with directed white light, the color temperature is adjustable in 100-Kelvin steps from 2700 Kelvin (artificial light / warm white) via 5600 Kelvin (daylight / neutral white) to 6500 Kelvin (daylight / cold white). In addition, with directed white light green and magenta can each be adjusted in 100 increments. The light is flicker-free and without infrared and UV components. High color rendering index: CRI: 95, TLCI: 98.

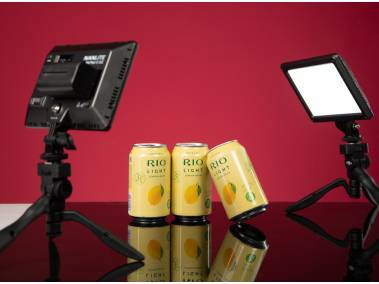

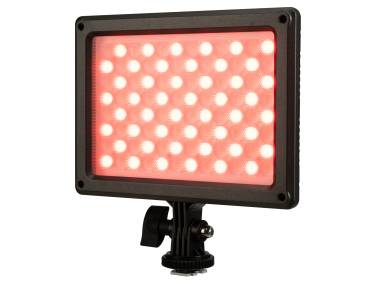

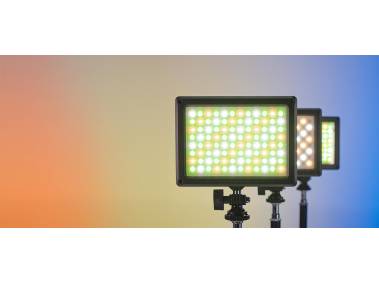

With colored light it is possible to add color effects to portraits, product shots and scenes or to create a particular lighting atmosphere, for example by a background illuminated with colored light. You can generate 360 different colors of the visible spectrum by mixing the light from LEDs with the primary colors red, green and blue (RGB). In addition color saturation can be adjusted between 0 % and 100 %, thus 36000 shades of color can be represented.
With glare-free white light, directed white light and colored light and also with the special effects listed below, the brightness can be adjusted in 1 % increments from 0 % to 100 %.
17 lighting effects that can all be varied individually offer creative arrangements for cinematic scenes: Thunderstorm simulation, police car, TV simulation created by sudden random brightness changes, popping-up flashbulbs (“Paparazzi”), candle-light/fire, lightshow simulation (“Disco”), simulation of a bad bulb created by flickering in irregular intervals, fireworks, explosions and the simulation of welding light. There are always multiple different setting possibilities. Besides adjusting the brightness, there are for example these settings when using the police car effect: blue, color change red/blue, color change blue/white and color change red/blue/white plus setting the flashing speed. The lightshow simulation offers the choice between 3, 6, 9, 12, 15, 18, 21 or 24 colors and the required speed of the color change. And the fireworks effect features besides other setting the possibility for adjusting the duration of the “die-down”.
Movie makers and photographers will furthermore enjoy effects like changing color, color temperature and brightness in infinite loop as well as flashing or pulsing with white light or colored light. These effects also allow a brightness change and – in addition – selecting initial and terminal value of the desired color spectrum of the color change in infinite loops plus the duration of the loop.

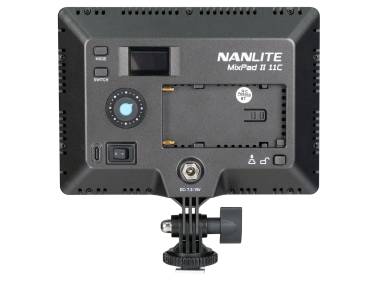

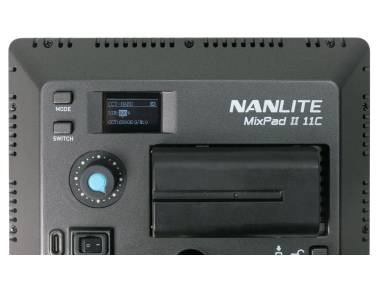

Control of all functions is done by only two keys and one control dial. All relevant data are displayed on the info screen.
The light can also be controlled wirelessly with the free NANLINK APP via Bluetooth.
Note: The NANLINK APP for iOS can be found in the APP Store, for Android at Google Play.

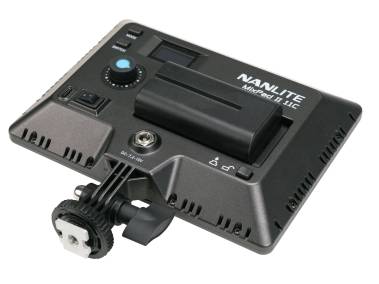

Power supply alternatively via the included Sony type NP-F lithium-ion battery or the optional mains adapter (code no. 3281).

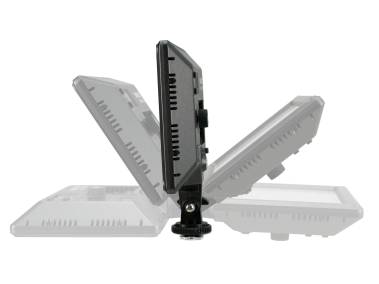

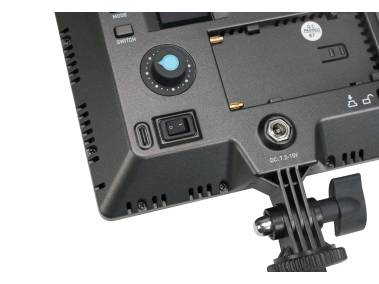

Steplessly adjustable swivel joint with mounting foot for a hot shoe and with 1/4” tripod thread.

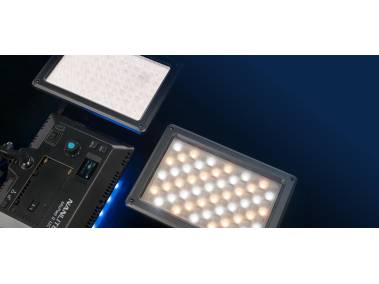

Front side with connection threads at the corners for optional accessories, such as a barn doors attachment.

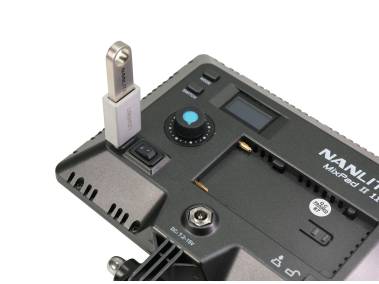

USB-C port for firmware update. For current firmware see
Scope of supply: lighting unit, KNP-F550 lithium-ion battery, charger.
Color temperature: 2700 – 6500 Kelvin
Color rendering index: CRI: 95, TLCI: 98
Green/magenta correction: -100 to +100 (with directed light)
Angle of radiation:
with glare-free light: 120°
with directed light: 45°
Max. illumination (lux):
at 0.5 m at 1 m at 2 m
Directed 2700 K 3620 905 225
light 3200 K 3275 820 205
4300 K 3365 840 210
5600 K 3370 840 210
6500 K 3660 915 230
Glare-free 2700 K 535 135 35
light 3200 K 565 140 35
4300 K 625 155 40
5600 K 645 160 40
6500 K 720 180 45
Red 1120 280 70
Green 2530 630 160
Blue 475 120 30
Panel size: approx. 13.7 x 9.2 cm (5.4 x 3.6 in.)
Operating voltage: DC 7.2 - 15 V
Rated power: 13 W
Lithium ion battery: KNP-F550, 2000 mAh
Dimensions (WxHxD): approx. 165 x 165 x 28-35 mm (6.5 x 6.5 x 1.1-1.4 in.) (with swivel joint)
w/o battery: approx. 340 g (0.75 lbs.)
with battery: approx. 440 g (1 lb.)
Input: AC 100 - 240 V, 50/60 Hz
Output: DC 8.4 V, 600 mA
3733 - NANLITE BD-MPII11C Barn Doors Attachment
3632 - KNP-F550 Lithium-Ion Battery
3634 - KNP-F960/F970 Lithium-Ion Battery
6049 - „SwingGrip“ Combined Mini Tripod and Hand Grip
5857 - Multi-Purpose Stand Base
6014 - Threading Adapter with 2 x 1/4" threaded pin and lock nut
